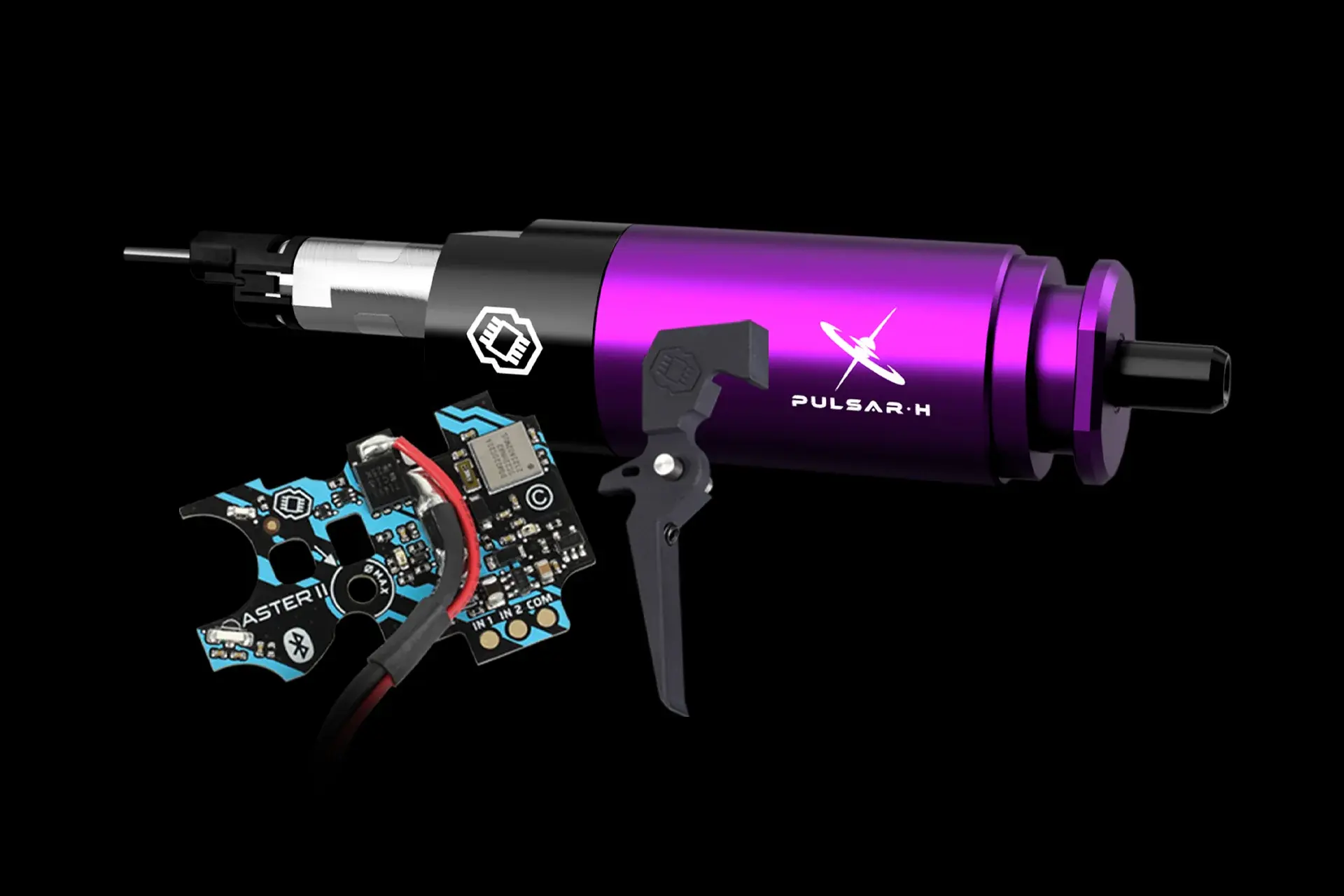

PULSAR H - Hybrid Single Solenoid HPA Engine

Experience enhanced precision and alignment tolerance with the PULSAR H's innovative 2-stage hybrid open-bolt system. This engine combines the advantages of both single and dual solenoid systems, eliminating common issues associated with traditional open-bolt designs while maintaining user-friendly operation and a lower cost typical of single solenoid engines. The nozzle movement cycle is separated from the air supply cycle, ensuring consistent performance. Enjoy the benefits of an open-bolt system, including the elimination of the first-shot blank found in closed-bolt engines. Get insane muzzle velocities ranging from 250-550 FPS & ROF from 1-40 RPS for CQB, assault, and sniper replicas.

When purchased in a bundle with ASTER II Bluetooth® , you get an unprecedented trigger response, thanks to the combination of optical sensors and HPA technology. ASTER II Bluetooth® increases the price-performance ratio by including an adjustable Quantum Trigger 2 and Bluetooth® 5.2 onboard. Now, out of the box, you can set sensitivity from ludicrous touch through hair to full movement.

•

• PULSAR H is unique thanks to the following combination:

  • Innovative 2-stage hybrid open-bolt system
  • Enhanced precision and alignment tolerance
  • It is definitely less sensitive to replica and assembly quality
  • It combines the advantages of both single and dual solenoid systems , eliminating common issues associated with traditional open-bolt designs while maintaining user-friendly operation and a lower cost typical of single solenoid engines
  • Separated nozzle movement cycle from the air supply cycle, ensuring consistent performance
  • No first-shot blank found in closed-bolt engines
  • Seamless integration & compatibility with the most advanced optical ETU/FCU TITAN II Bluetooth® & ASTER II Bluetooth® for a synergy effect
  • High tolerances eliminating the mid-cap syndrome
  • No FPS drops on AUTO relative to SEMI mode at high RPS – up to 40 RPS with no FPS drops

  • PULSAR H FEATURES

    • SIMPLE – Easy maintenance, thanks to a well thought-out design
    • VALUE FOR MONEY – State-of-the-art technology at the best price
    • Bluetooth® ETU/FCU CONTROLLED – ASTER II Bluetooth® V2
    • NO MID-CAP SYNDROME - Eliminated mid-cap syndrome thanks to high dimensional tolerance
    • ACCURACY – High accuracy due to the innovative 2-stage hybrid open-bolt system
    • STABILITY – FPS stability in full AUTO mode
    • ACCESSORIES – Use the I/O port to connect accessories such as the bolt-catch button, magazine sensor
  •



    SPECIFICATIONS

    • PULSAR H – Hybrid Single Solenoid HPA Engine

      The design and production of the device is based on harmonized standards.

      Solenoid Voltage Range

      5-8.4 V

      Operating Pressure

      Up to 140 PSI – high pressure only

      Gas Consumption

      For 90 PSI and a 48 ci/0.8 l 300 bar/4500 PSI bottle – 1 PSI per shot

      Dimensions (Length x Diameter)

      116mm x 25.4mm

      Finished Product Weight

      92 g

      Operating Temperature Range

      min. -15° C, max. +50° C

      Relative Humidity

      ≤ 80%

      Regulated ROF

      1 to 40 RPS (BB feed correctness depends on magazine)

      Velocity

      250 – 550 FPS

      Operation Mode

      Hybrid Open-Bolt

    • ASTER II Bluetooth®

      Supply Voltage Range

      5-8.6 VDC

      Current Consumption

      20 mA

      Low Power Mode

      130 µA

      Connectivity

      Bluetooth® 5.2 Low Energy

      Dimensions (Length x Width x Thickness)

      43.8mm x 28.7mm x 5.5mm

      Finished Product Weight

      23.4 g

      Operating Temperature Range

      min. -15° C, max. +50° C

      Relative Humidity

      ≤ 80%

      ㅤ

      ㅤ

      Read more about ASTER II Bluetooth®
