| Artikelnummer: | CNC Stainless Steel/Aluminum Spring Guide V2 |
| Beschikbaarheid: | Niet op voorraad |
| Levertijd: | Op bestelling - levertijd 4 a 5 weken |

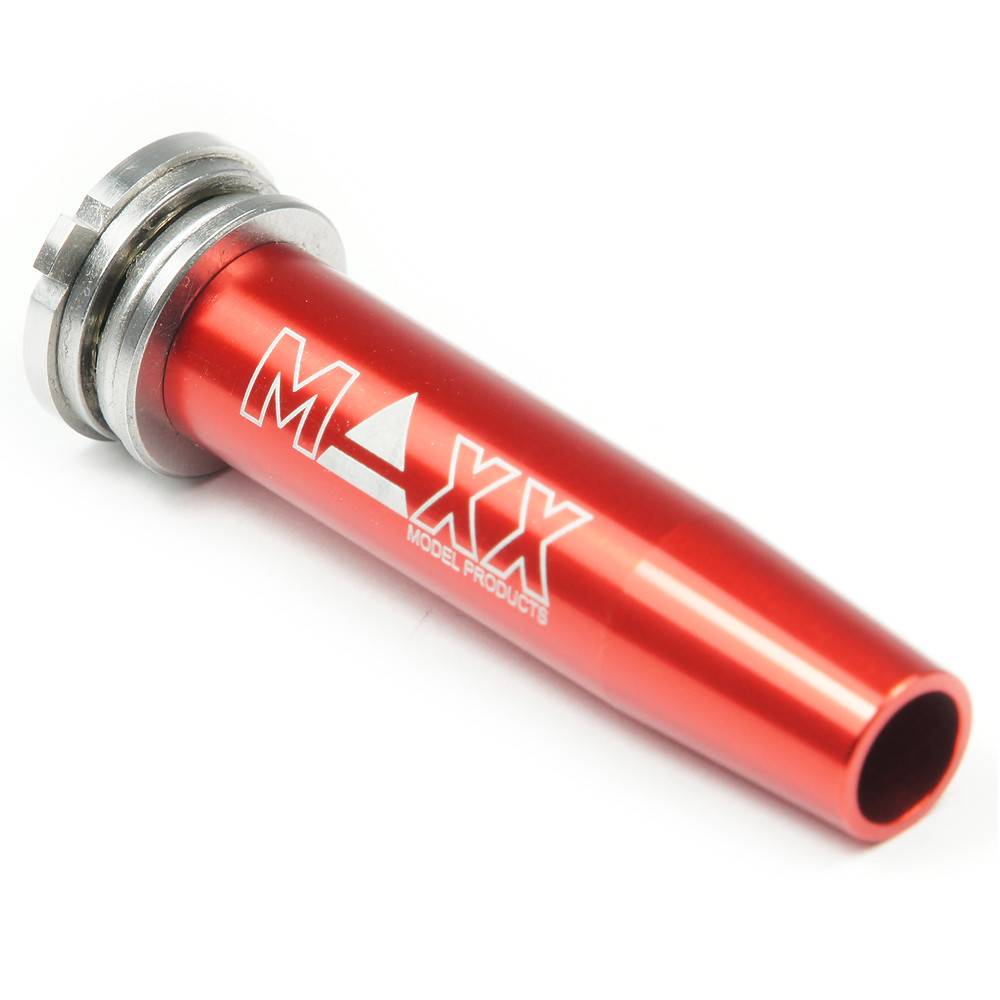

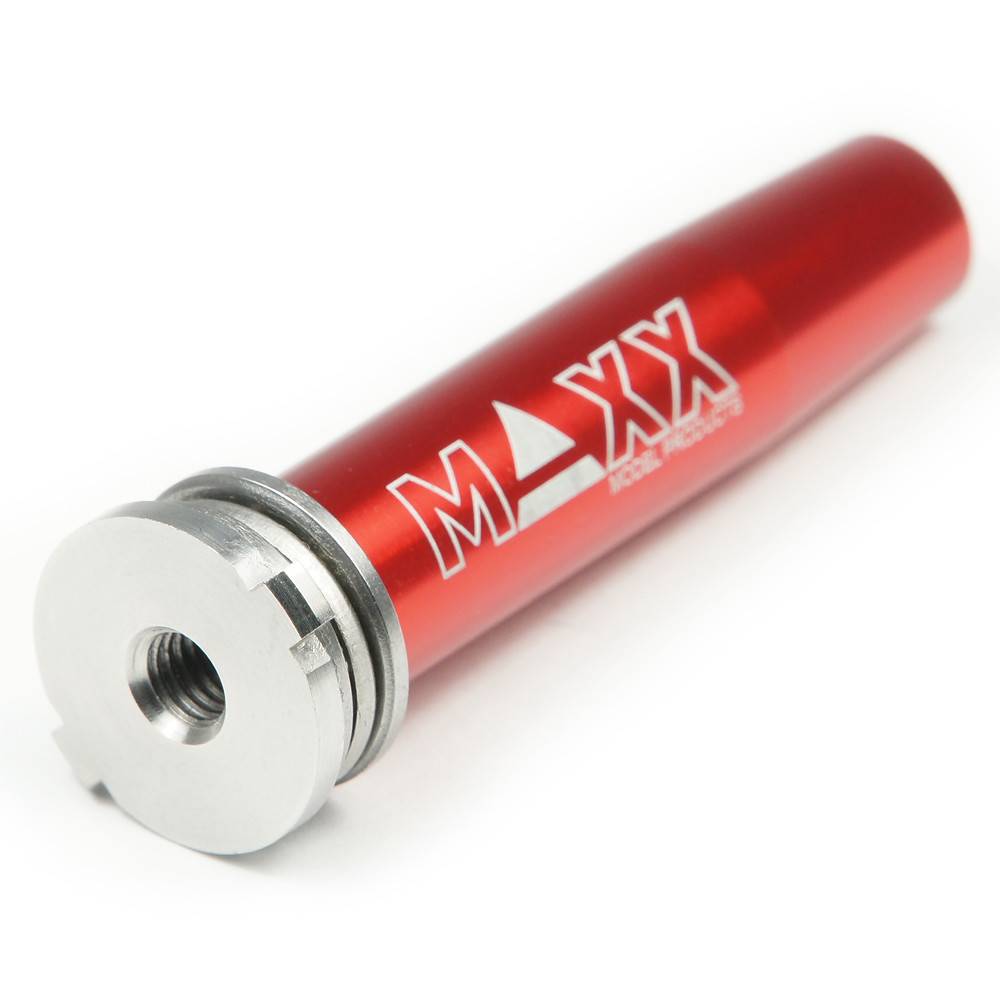

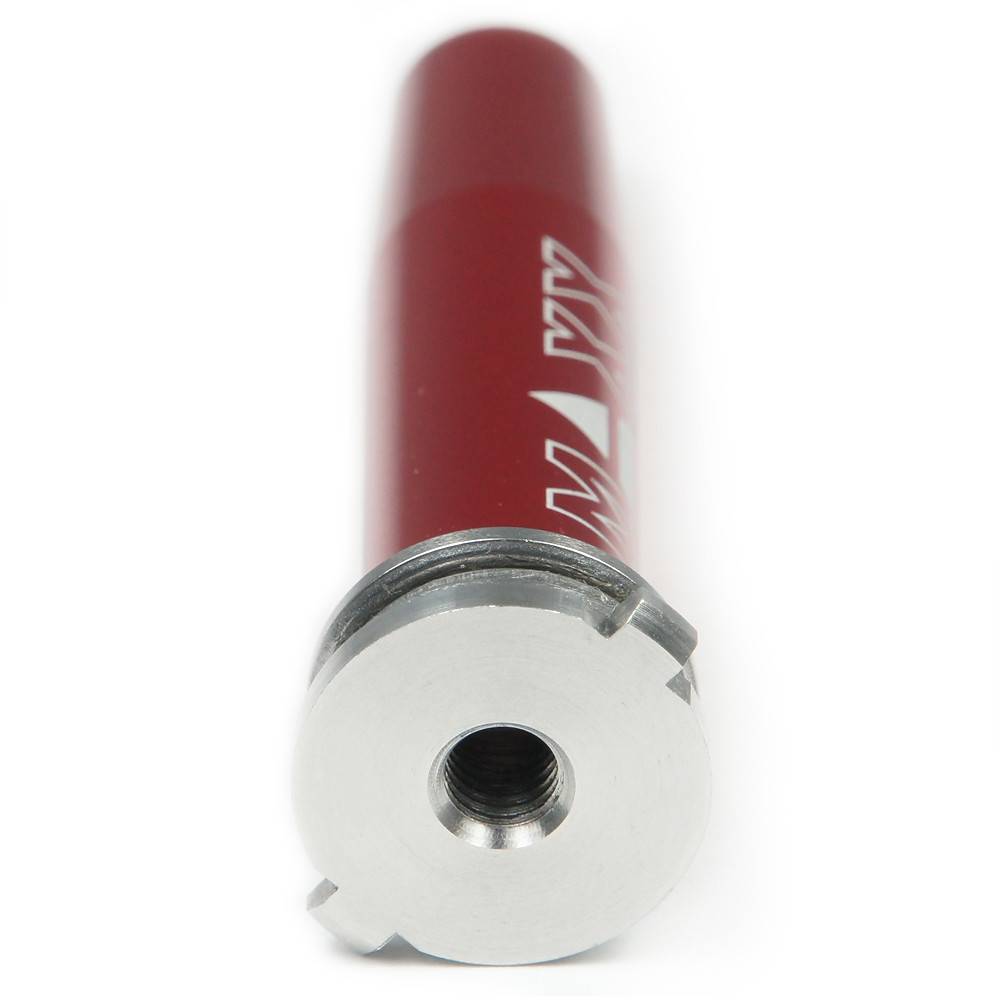

CNC Stainless Steel/Aluminum Spring Guides are designed to keep the spring in line and allow the spring to rotate on shaft during high compression, suitable for AEG version 2 gear box upgrades.
This Spring Guide is machined with an M5 thread on stainless steel hub to hold the stock securely and equipped thrust ball bearing to reduce spring stress and breakage during high speed spring compression. Made of Stainless Steel and Aluminum.
| Includes | |
 |
1 x CNC Stainless Steel/Aluminum Spring Guide |
| Specification |
|
Hub Internal Thread: M5x0.80 |
|
Hub Outer Diameter: 16mm |
|
Shaft Outer Diameter: 10.8mm |
|
Shaft Length: 44.5mm |
|
Overall Length: 51.5mm |
|
Material: Stainless Steel and Aluminum |
| Features | |
|
Stainless Steel and Aluminum construction |
|
Machined M5 thread on stainless steel hub |
|
Equipped thrust ball bearing to reduce spring stress and breakage |
|
Aligned spring in line and rotate on shaft during high compression |
|
Strong stainless steel hub chamfer shoulder designs |
| Weight | |
|
14 grams |
| Usage | |
|
Used for AEG version 2 gear box upgrades (M4, M16, MP5,...) |
| Requires | |
|
Wearing eye protection is recommended |
|
Use proper tools for disassembly and reassembly the spring guide with great care due to spring tension |
|
Bearing lubricant oil/grease is recommended for smooth operation |
| Instruction | |
|
Instruction Manuals are included |
